Sensor Racks

Sensor racks are used to store probe systems and sensors on the coordinate measuring machine. System expansions are included - precisely fitting and versatile. The changing magazines are integrated into the machine software, so that the probe change is carried out automatically. All ZEISS configurations are supported by suitable probe bays.
Multi Sensor Rack (MSR) for ZEISS XENOS
626100-9372-000
Measuring Area X
900
31.500,00 DKKSales tax not included
 Express: Shipment today
 Delivery information
Sensor Rack micro VAST XXT
626100-9382-010
7.936,00 DKKSales tax not included
 Shipment within: 2 days

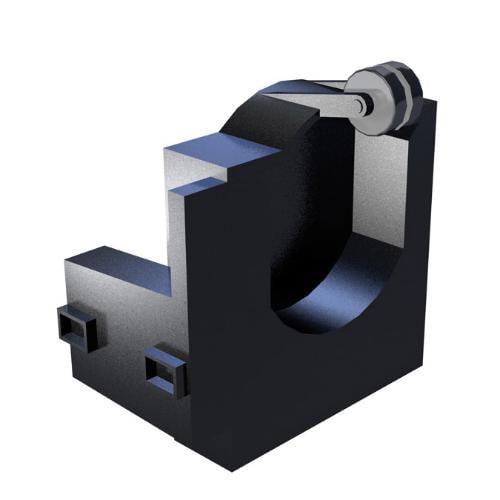

Probe socket for RDS
621770-8040-000
1.200,00 DKKSales tax not included
 Shipment within: 2 days
2.625,00 DKKSales tax not included
 Shipment within: 2 days
14.175,00 DKKSales tax not included
 Express: Shipment today
 Delivery information
43.125,00 DKKSales tax not included
 Shipment within: 2 days
Multi Sensor Rack (MSR) 3-fold for ZEISS O-INSPECT 322
626100-9382-020
Measuring Area X
150
8.325,00 DKKSales tax not included
 Shipment within: 2 days
Multi Sensor Rack (MSR) X=1000
626100-8322-010
Measuring Area X
1000
17.250,00 DKKSales tax not included
 Shipment within: 2 days
7.080,00 DKKSales tax not included
 Shipment within: 4 days
Probe head storage
000000-1028-812
1.995,00 DKKSales tax not included
 Shipment within: 4 days
Maximum availability

Maximum availability

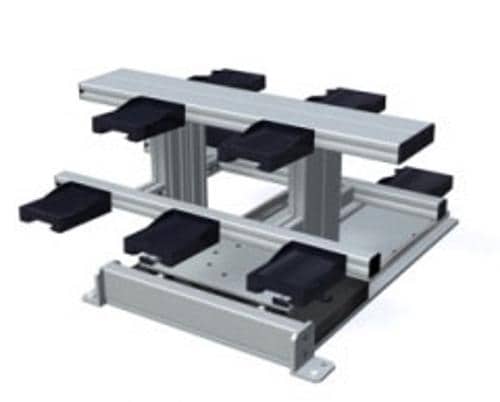

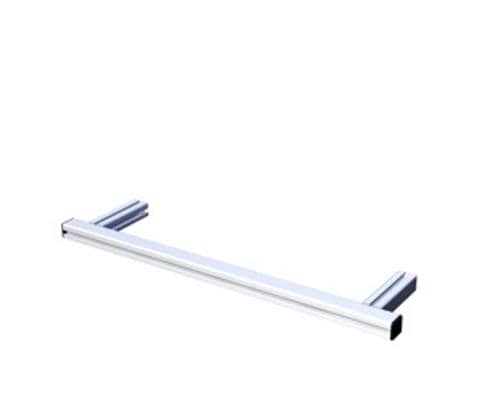

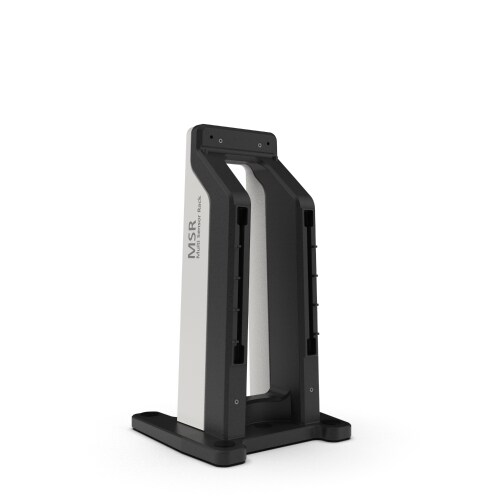

The rigid probe changing magazine ZEISS Multi-Sensor-Rack (MSR) is available in different heights and widths for all sizes of ZEISS coordinate measuring machines. Probe systems are changed automatically while the MSR is located within the measuring volume. The capacity on the MSR is increased with additional planes. The MSR Duplex offers twice as many probe storage locations as the standard version. To do this, it is manually pushed out of the measuring range, rotated by 180 degrees and fixed in the measuring range with repeat accuracy.
Optimized measuring range

Optimized measuring range

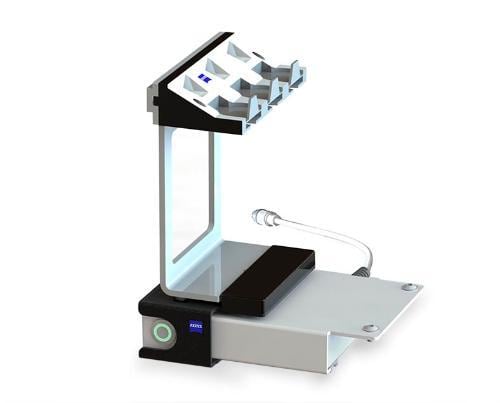

The automated probe changing magazine ZEISS ProMax stores probe systems outside the measuring range. This means that the measuring volume is optimally used for the workpiece and the travel path of the probe head, while collisions with the sensor rack are ruled out. When required, the probe systems are automatically moved into the measuring range using a linear module. The measuring software ensures that probe changes are reliable and repeatable.
