M5

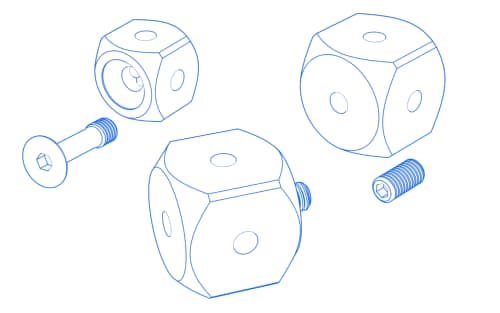

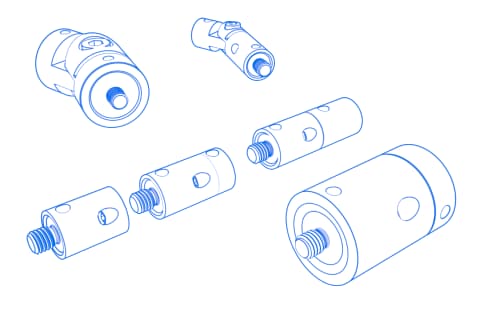

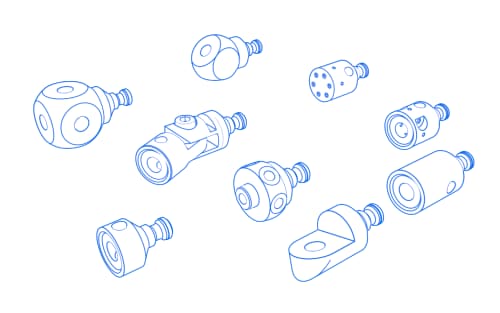

M5 connecting elements are primarily used in VAST stylus systems. Choose from a range of M5 threaded fasteners: Cone Mount, Cone Inserts, Rotatable Star Elements and Angles, Fixed Angles and Cubes, and Kinked and Rotated Elements.

221 products
Sort results
626107-6280-120
Product Type
Star Element
Length (L)
10,0 mm
Angle 1 (W1)
90,0 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
7,0 mm
Ø Shaft (DS)
2,0 mm
Application
Connect
Ø Body (DG)
11,0 mm
Weight
4,0 g
721,00 DKKexcl. VAT
Available
626105-6280-030
626105-6280-030
Product Type
Rotary Elements
Length (L)
30,0 mm
Material
Titanium
Connection Type
M5
Application
Connect
Ø Body (DG)
11,0 mm
Weight
11,33 g
Connection Type Out
M5
737,00 DKKexcl. VAT
Available
626107-6022-226
Product Type
Angle
Length (L)
43,0 mm
Angle 1 (W1)
90,0 °
Angle 2 (W2)
10,0 °
Material
Titanium
Connection Type
M5 Pro
Measurement Length (ML)
35,0 mm
Application
Angle
Ø Body (DG)
20,0 mm
Weight
24,0 g
1.371,00 DKKexcl. VAT
Longer delivery time
626107-6022-202
Product Type
Angle
Length (L)
43,0 mm
Angle 1 (W1)
90,0 °
Angle 2 (W2)
15,0 °
Material
Titanium
Connection Type
M5 Pro
Measurement Length (ML)
35,0 mm
Application
Angle
Ø Body (DG)
20,0 mm
Weight
24,0 g
1.234,00 DKKexcl. VAT
Available
626107-6023-028
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
65,0 °
Angle 2 (W2)
- 65,0 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
16,5 g
874,00 DKKexcl. VAT
Made to Order
626105-6020-040
626105-6020-040
Product Type
Angle
Length (L)
15,0 mm
Length 1 (L1)
15,0 mm
Angle 1 (W1)
40,0 °
Material
Aluminum
Connection Type
M5
Application
Connect
Width (B)
12,0
Weight
11,0 g
Connection Type Out
M5
869,00 DKKexcl. VAT
Longer delivery time
626105-6020-030
626105-6020-030
Product Type
Angle
Length (L)
15,0 mm
Length 1 (L1)
15,0 mm
Angle 1 (W1)
30,0 °
Material
Aluminum
Connection Type
M5
Application
Connect
Width (B)
12,0
Weight
11,0 g
Connection Type Out
M5
869,00 DKKexcl. VAT
Available
626107-6022-045
Product Type
Angle
Length (L)
43,0 mm
Angle 1 (W1)
0,0 °
Angle 2 (W2)
45,0 °
Material
Titanium
Connection Type
M5 Pro
Measurement Length (ML)
35,0 mm
Application
Angle
Ø Body (DG)
20,0 mm
Weight
24,0 g
1.234,00 DKKexcl. VAT
Available
626107-6021-045
Product Type
Angle
Length (L)
25,0 mm
Angle 1 (W1)
0,0 °
Angle 2 (W2)
45,0 °
Material
Titanium
Connection Type
M5 Pro
Measurement Length (ML)
17,0 mm
Application
Angle
Ø Body (DG)
20,0 mm
Weight
17,0 g
1.049,00 DKKexcl. VAT
Longer delivery time
626105-6280-010
Product Type
Angle
Length (L)
30,5 mm
Angle 1 (W1)
90,0 °
Connection Type
M5
Measurement Length (ML)
25,0 mm
Application
Connect
Ø Body (DG)
11,0 mm
Weight
9,0 g
Connection Type Out
M5
712,00 DKKexcl. VAT
Available
626105-6280-040
Product Type
Rotary Elements
Length (L)
40,0 mm
Material
Titanium
Connection Type
M5
Application
Connect
Ø Body (DG)
11,0 mm
Weight
16,0 g
Connection Type Out
M5
1.113,00 DKKexcl. VAT
Longer delivery time
626107-6022-060
Product Type
Angle
Length (L)
43,0 mm
Angle 1 (W1)
0,0 °
Angle 2 (W2)
60,0 °
Material
Titanium
Connection Type
M5 Pro
Measurement Length (ML)
35,0 mm
Application
Angle
Ø Body (DG)
20,0 mm
Weight
24,0 g
1.371,00 DKKexcl. VAT
Longer delivery time
626105-6280-060
Product Type
Star Element
Length (L)
25,0 mm
Angle 1 (W1)
90,0 °
Material
Titanium
Connection Type
M5
Measurement Length (ML)
20,0 mm
Application
Connect
Ø Body (DG)
11,0 mm
Width (B)
13,0
Weight
10,0 g
1.297,00 DKKexcl. VAT
Longer delivery time
626107-6020-505
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
16,7 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
9,5 g
Connection Type Out
M5
621,00 DKKexcl. VAT
Longer delivery time
626107-6023-020
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
49,0 °
Angle 2 (W2)
- 49,0 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
16,5 g
874,00 DKKexcl. VAT
Made to Order
626119-0001-019
Product Type
Screw
Connection Type
M5
Application
Connect
83,00 DKKexcl. VAT
Available
626107-6020-030
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
30,0 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
9,5 g
Connection Type Out
M5
690,00 DKKexcl. VAT
Available
626107-6023-030
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
52,0 °
Angle 2 (W2)
- 18,0 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
16,5 g
874,00 DKKexcl. VAT
Longer delivery time
626105-6020-065
626105-6020-065
Product Type
Angle
Length (L)
15,0 mm
Length 1 (L1)
15,0 mm
Angle 1 (W1)
65,0 °
Material
Aluminum
Connection Type
M5
Application
Connect
Width (B)
12,0
Weight
11,0 g
Connection Type Out
M5
939,00 DKKexcl. VAT
Made to Order
626107-6022-201
Product Type
Angle
Length (L)
43,0 mm
Angle 1 (W1)
0,0 °
Angle 2 (W2)
10,0 °
Material
Titanium
Connection Type
M5 Pro
Measurement Length (ML)
35,0 mm
Application
Angle
Ø Body (DG)
20,0 mm
Weight
24,0 g
1.371,00 DKKexcl. VAT
Made to Order
626107-6020-486
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
75,5 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
9,5 g
Connection Type Out
M5
621,00 DKKexcl. VAT
Longer delivery time
626107-6023-014
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
90,0 °
Angle 2 (W2)
9,0 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
16,5 g
874,00 DKKexcl. VAT
Longer delivery time
626107-6023-017
Product Type
Angle
Length (L)
16,0 mm
Angle 1 (W1)
0,0 °
Angle 2 (W2)
78,0 °
Material
Titanium
Connection Type
Cone Adapter
Measurement Length (ML)
10,0 mm
Application
Angle
Ø Body (DG)
11,0 mm
Weight
16,5 g
874,00 DKKexcl. VAT
Made to Order
626107-6022-755
Product Type
Angle
Length (L)
43,0 mm
Angle 1 (W1)
230,3 °
Angle 2 (W2)
38,1 °
Material
Titanium
Connection Type
M5 Pro
Measurement Length (ML)
35,0 mm
Application
Angle
Ø Body (DG)
20,0 mm
Weight
24,0 g
1.371,00 DKKexcl. VAT
Longer delivery time
