Styli (7.365)

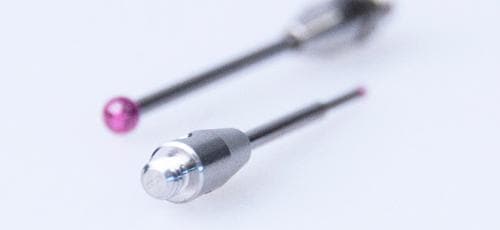

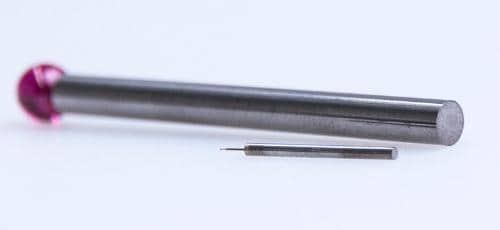

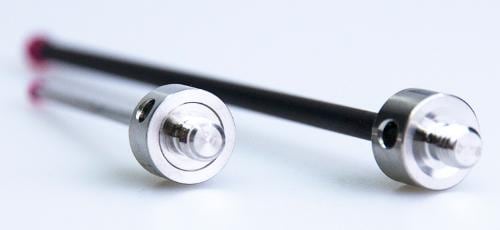

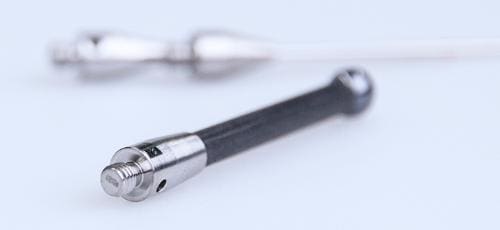

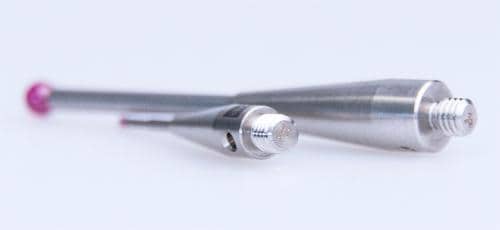

ZEISS styli are available in a wide variety of designs. A large portfolio of standard styli for M2, M3, M3XXT or M5 threads is available. For these styli, different stylus elements made of different materials and different shaft designs are available. Furthermore, there are also styli without thread, as well as special styli for form, contour and surface measurements available.
Ø Sphere (DK)
Length (L)
Meas. Len.
Stylus M5, DK4 L122
626105-0464-122
Ø Sphere (DK)
4,0 mm
Length (L)
122,0 mm
Ø Shaft (DS)
2,5 mm
Meas. Len.
112,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
864,00 DKKSales tax not included
 Shipment within: 5 days
Stylus M3, DK0,2 L19 stepped
626123-5144-019
Ø Sphere (DK)
0,2 mm
Length (L)
19,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
13,0 mm
Ø2 Shaft (DSE)
0,15 mm
2. Meas. Len.
3,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
648,00 DKKSales tax not included
 Shipment within: 2 days
Stylus M5, DK5 L168
626105-0515-168
Ø Sphere (DK)
5,0 mm
Length (L)
168,0 mm
Ø Shaft (DS)
3,5 mm
Meas. Len.
158,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
496,00 DKKSales tax not included
 Shipment within: 5 days
Stylus M3, DK1 L14 stepped
626123-0044-014
Ø Sphere (DK)
1,0 mm
Length (L)
14,0 mm
Ø Shaft (DS)
1,0 mm
Meas. Len.
8,0 mm
Ø2 Shaft (DSE)
0,8 mm
2. Meas. Len.
5,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
368,00 DKKSales tax not included
 Shipment within: 5 days
Stylus with thread, M5, cylinder
626115-0302-060
Ø Sphere (DK)
3,0 mm
Length (L)
60,0 mm
Ø Shaft (DS)
3,0 mm
Meas. Len.
50,0 mm
Styl. Tip Mat.
Tung. Carb
Shaft Mat.
Tung. Carb
1.384,00 DKKSales tax not included
 Shipment within: 10 days
Stylus M5, DK4 L94
626105-0465-094
Ø Sphere (DK)
4,0 mm
Length (L)
94,0 mm
Ø Shaft (DS)
2,5 mm
Meas. Len.
84,0 mm
Styl. Tip Mat.
Si-N
Shaft Mat.
Tung. Carb
464,00 DKKSales tax not included
 Shipment within: 5 days
Stylus with thread, M3, straight
626113-0800-045
Ø Sphere (DK)
8,0 mm
Length (L)
45,0 mm
Ø Shaft (DS)
3,0 mm
Meas. Len.
35,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Ceramic
512,00 DKKSales tax not included
 Shipment within: 22 days
Stylus M5, DK4 L14
626105-0404-014
Ø Sphere (DK)
4,0 mm
Length (L)
14,0 mm
Ø Shaft (DS)
2,0 mm
Meas. Len.
4,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
304,00 DKKSales tax not included
 Shipment within: 5 days
Stylus M5, DK6 L40
626115-0600-040
Ø Sphere (DK)
6,0 mm
Length (L)
40,0 mm
Ø Shaft (DS)
2,0 mm
Meas. Len.
30,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
672,00 DKKSales tax not included
 Shipment within: 10 days
Stylus M5, DK3 L93
626105-0304-093
Ø Sphere (DK)
3,0 mm
Length (L)
93,0 mm
Ø Shaft (DS)
2,0 mm
Meas. Len.
83,0 mm
Styl. Tip Mat.
Ruby
Shaft Mat.
Tung. Carb
360,00 DKKSales tax not included
 Shipment within: 5 days
The different shaft materials

The different shaft materials

The shaft material used and the shaft cross-section have the greatest influence on the stylus rigidity. For standard styli, ZEISS uses shafts made of a high-strength carbide. These represent a good compromise in terms of weight, deflection and thermal linear expansion. Styli with ThermoFit shafts are particularly light, stiff and have only a small linear expansion under the influence of heat. They are therefore particularly suitable for applications in the M3XXT range and for long styli with a large shaft thickness. ZEISS is the only supplier to use a high-strength Grade 5 titanium alloy for the adapters. This gives the adapters high rigidity and makes them significantly lighter than steel adapters and also makes them anti-magnetic and corrosion-resistant.
The suitable sphere material

The suitable sphere material

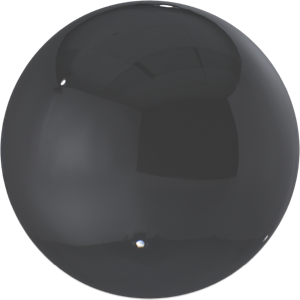

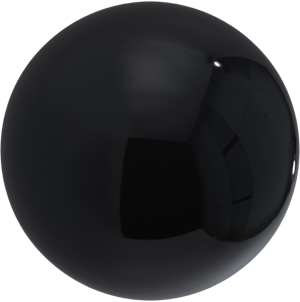

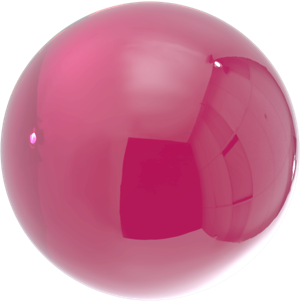

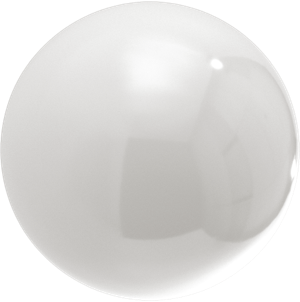

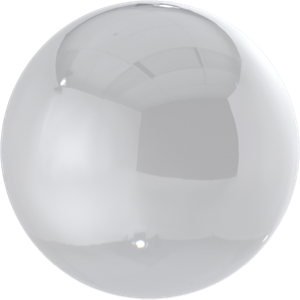

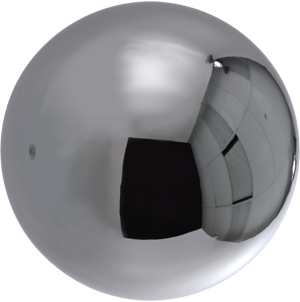

Usually a sphere is used as the stylus element. This sphere can be made of different materials and is suitable for different applications depending on the material. The standard are ruby spheres, but in combination with continuous scanning they can wear out or apply material to some surfaces. An alternative is silicon nitride, which has less material application when scanning aluminum, for example. Diamond coated or solid diamond spheres are especially suitable for scanning hard surfaces or soft aluminum alloys. Even sharp edges or single point scans with high load can be reliably performed. They have a very long durability, as they do not wear out and do not raise material.
