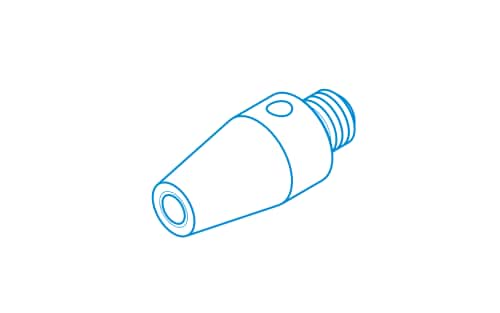

- Adapters(2)

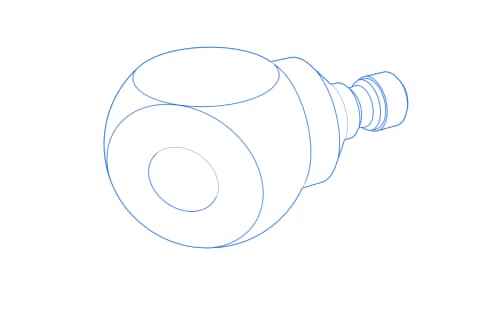

- Angles(14)

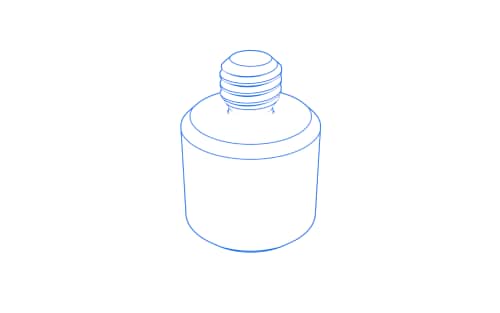

- Counterweight(2)

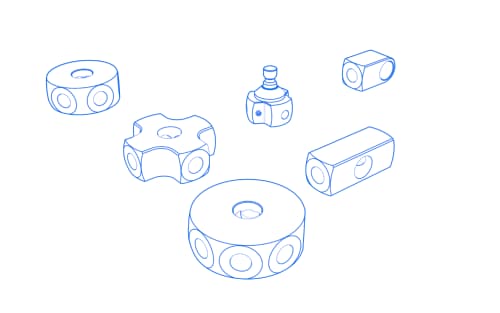

- Cubes and various elements for clamping(5)

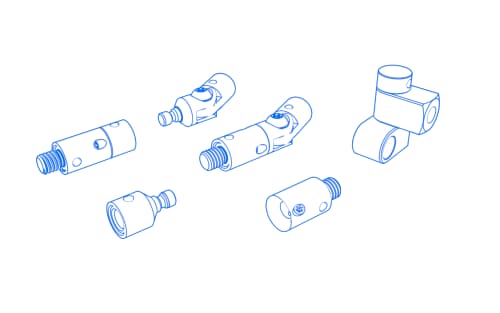

- Knuckle and rotary elements(3)

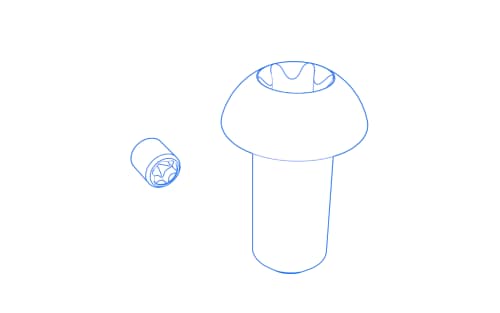

- Screws(3)

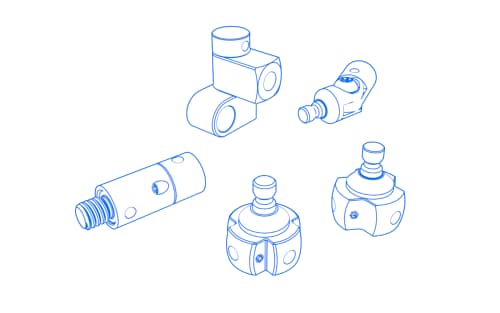

- Inserts with cone adapter(4)
- M3(3)
- M2(9)
- M5 Pro(12)
M3 XXT
Our original ZEISS rotary joints are based on a backlash-free conical connection. Three robust M1.2 threaded pins with torx interfaces provide high clamping forces. The rotary joints can be easily adjusted even after repeated assembly and disassembly of the stylus system and hold their styli securely.
626103-6020-035
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 35,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Made to Order
626103-6110-005
- Product Type
- Screw
- Length (L)
- 8,0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 4,0 mm
104,00 DKKexcl. VAT
Available
626103-6180-011
- Product Type
- Rotary Elements
- Length (L)
- 4,0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 5,0 mm
- Weight
- 1,0 g
217,00 DKKexcl. VAT
Available
626103-6180-004
- Product Type
- Star Element
- Length (L)
- 4,7 mm
- Angle 1 (W1)
- 120,0 °
- Connection Type
- M3 XXT
- Measurement Length (ML)
- 2,5 mm
- Ø Shaft (DS)
- 1,5 mm
- Application
- Connect
- Ø Body (DG)
- 5,0 mm
- Width (B)
- 7,9
- Weight
- 2,0 g
2.425,00 DKKexcl. VAT
Available
626103-6020-015
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 15,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Available
626170-0002-715
- Product Type
- Adapter
- Length (L)
- 9,0 mm
- Material
- Titanium
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 5,0 mm
- Weight
- 1,0 g
- Connection Type Out
- M2
156,00 DKKexcl. VAT
Available
626103-6020-040
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 40,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Made to Order
626103-6020-090
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 90,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
745,00 DKKexcl. VAT
Available
626119-0001-041
- Product Type
- Screw
- Connection Type
- M3 XXT
- Application
- Connect
168,00 DKKexcl. VAT
Available
626103-6020-039
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 39,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Longer delivery time
626103-6180-020
- Product Type
- Rotary Elements
- Length (L)
- 19,0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 5,0 mm
- Weight
- 1,0 g
1.196,00 DKKexcl. VAT
Available
626103-6020-030
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 30,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
745,00 DKKexcl. VAT
Available
626103-6020-021
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 21,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Longer delivery time
626103-6020-117
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 40,5 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Longer delivery time
626103-6110-001
- Product Type
- Cube
- Length (L)
- 6,5 mm
- Angle 1 (W1)
- 90,0 °
- Material
- Titanium
- Connection Type
- M3 XXT
- Application
- Connect
- Width (B)
- 5,0
- Weight
- 0,6 g
- Connection Type Out
- M3 XXT
423,00 DKKexcl. VAT
Available
626103-6110-003
- Product Type
- Cube
- Length (L)
- 13,0 mm
- Angle 1 (W1)
- 90,0 °
- Material
- Titanium
- Connection Type
- M3 XXT
- Application
- Connect
- Width (B)
- 5,0
- Weight
- 1,8 g
- Connection Type Out
- M3 XXT
527,00 DKKexcl. VAT
Available
626103-6020-055
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 55,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Available
626103-6020-025
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 25,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Expected soon
626103-6180-021
- Product Type
- Rotary Elements
- Length (L)
- 12,0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 5,0 mm
- Weight
- 1,0 g
672,00 DKKexcl. VAT
Available
626103-6180-010
- Product Type
- Rotary Elements
- Length (L)
- 11,0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 5,0 mm
- Weight
- 1,0 g
795,00 DKKexcl. VAT
Available
626103-6020-118
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 6,5 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
745,00 DKKexcl. VAT
Longer delivery time
626103-6110-004
- Product Type
- Screw
- Length (L)
- 8,0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 3,5 mm
109,00 DKKexcl. VAT
Available
626103-6110-006
- Product Type
- Cube
- Length (L)
- 12,0 mm
- Angle 1 (W1)
- 60,0 °
- Material
- Titanium
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 12,0 mm
- Width (B)
- 5,0
- Weight
- 1,8 g
- Connection Type Out
- M3 XXT
593,00 DKKexcl. VAT
Available
626103-6020-045
- Product Type
- Angle
- Length (L)
- 7,75 mm
- Angle 1 (W1)
- 45,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4,0 mm
- Application
- Angle
- Ø Body (DG)
- 5,0 mm
- Weight
- 0,82 g
- Connection Type Out
- M3 XXT
671,00 DKKexcl. VAT
Available
33 Items
