Application
General measurement

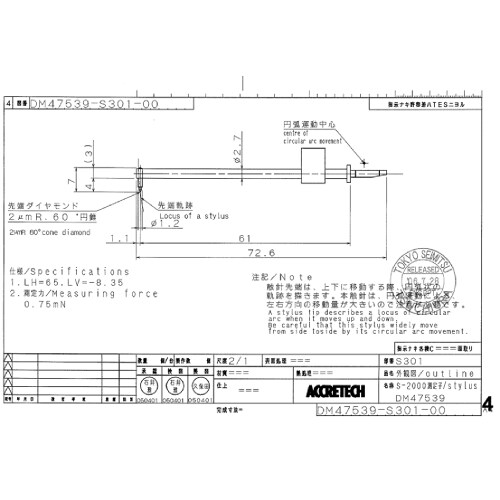

- ACCT-no. DM47539
- Tip: 2µm R, 60° cone, diamond
Details
- Application
- Tactile
- Product Type
- Surface Stylus
- Stylus Type
- L-Stylus
- Stylus Tip Material
- Diamond
- Stylus Tip Geometry
- Pointer
- Length (L)
- 72,6 mm
- Measurement Length (ML)
- 61,0 mm
- 2nd Measurement Length (MLE)
- 4,0 mm
- LH
- 65,0 mm
- LV
- - 8,35 mm
- Shaft Material
- Steel
- Ø Shaft (DS)
- 2,7 mm
- 2nd Ø Shaft (DSE)
- 1,2 mm
- Width (B)
- 7,0 mm
- Angle 1 (W1)
- 60,0 °
ACCT-no. DM47539
